2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna

Name: 2G GSM Omni Directional 4g 3g Lte External Antenna NBIot AP Base Station Gateway Fiberglass Antenna
Brand: Leenz
Price: 1 USD

China 2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna wholesale

Brand Name : Leenz

Model Number : LZANT-10091-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 698-960/1710-2700M

VSWR : <2

Peak Gain : 3dBi

Impedance : 50

Contact Now

2G3G4G LTE GSM NB-Iot omnidirectional outdoor AP base station gateway with external waterproof fiberglass antenna
1. Specification

A. Electrical Characteristics
Frequency	698-960MHz	1710-2700MHz
Impedance	50 Ohm	50 Ohm
S.W.R.	<2	<2
Gain	2.5dBi	5dBi
Efficiency	≈56%	≈64%
Polarization	Linear	Linear
Horizontal Beamwidth	360°	360°
Vertical Beamwidth	40±7°	22±6°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Male
Dimension	Φ20*150mm
Weight	0.1Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85˚C
Storage Temperature	- 40 ˚C ~ + 85˚C

2. Antenna - S Parameter Test Data

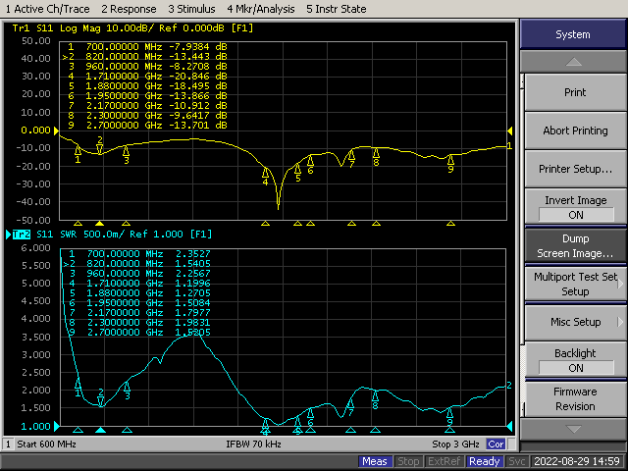

2.1 VSWR
2G GSM Omni Directional 4g 3g Lte External Antenna NB-Iot AP Base Station Gateway Fiberglass Antenna

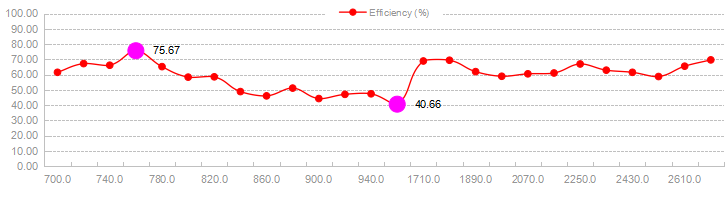

2.2 Total Efficiency & Gain:

Frequency(MHz)	700.0	720.0	740.0	760.0	780.0	800.0	820.0	840.0	860.0	880.0	900.0	920.0	940.0	960.0
Gain (dBi)	1.17	1.64	1.79	2.23	1.81	1.62	1.49	0.97	1.13	1.88	1.75	2.30	2.46	1.90
Efficiency (%)	61.54	67.26	66.18	75.67	65.26	58.38	58.59	48.92	46.10	51.19	44.34	47.10	47.46	40.66

Frequency(MHz)	1710.0	1800.0	1890.0	1980.0	2070.0	2160.0	2250.0	2340.0	2430.0	2520.0	2610.0	2700.0
Gain (dBi)	5.35	5.45	5.28	5.13	5.09	6.24	5.61	4.59	3.84	3.79	3.90	3.66
Efficiency (%)	68.96	69.45	62.00	58.95	60.55	61.09	66.99	62.94	61.53	58.78	65.55	69.68

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
700MHz
880MHz
960MHz

	3D	2D-Horizontal	2D-Vertical
1710MHz
2250MHz
2700MHz
